TRANSFORMER OIL FILTRATION

Our offerings in transformer oil purification services                                                                                                                                                                                                                                               Home / Services / Transformer Oil Filtration

Transformer' health maintenance


The transformer oil dehydration and degassing are key parameters that have been evaluated for a long time. Transformer oil is used in equipment where it provides cooling and insulation protection primarily. Over a period aggregated moisture, gasses, and solid particles can seriously affect the above parameters and demanded properties of oil.

​

To remove impurities, moisture, gasses, and solid particles online and off-line oil treatment machines is used. Moreover, this preventive maintenance process is known as Oil filtration or Oil purification or Oil regeneration aptly.

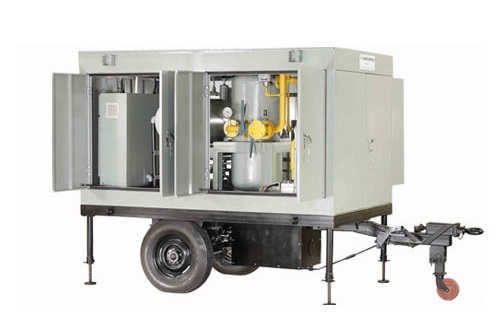

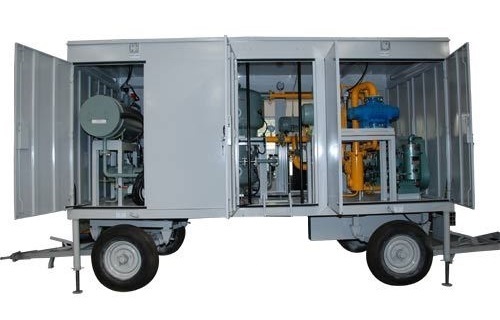

 The oil filtration/treatment machine possesses a positive displacement rotary inlet pump. The outlet pump is a centrifugal closed coupled high suction pump. For dehydration and degassing the rotary vane, a vacuum pump with an optional vacuum booster roots pump are used. The vacuum chamber houses a variable amount of filters combined with highly efficient ring mesh to achieve the most efficient treatment of oil. All oil treatment plants have automatic variable oil flow control to maximize operational efficiency. Vacuum breaking valves before and after the vacuum chamber ensures the vacuum side and the pressure side of the oil treatment machine are completely separated.

VAPOR PHASE DRYING & TRANSFORMER OIL PURIFICATION


Our qualified resources of men, machines, and materials are kept together in one place for this key preventive maintenance on transformers which is called oil filtration. The ultimatum is to achieve

a significant state of condition of oil while a transformer is in service and being processed for a properties that signifies the transformer oil.

 We offer cost-effective on-site services for reclaiming oil in a capacity of 3000 LPH and 6000 LPH to reinstate it's condition which impacts the expected life of the transformer directly..
